Product Description
The mill is intended for manufacturing of round pipe of Φ12.7mm-Φ38.1mm with thickness of 0.4mm–2.0mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.
Specifications
{SteelTape}→→ Double-head un-coiler →→Strip-head Cutter and welder→→

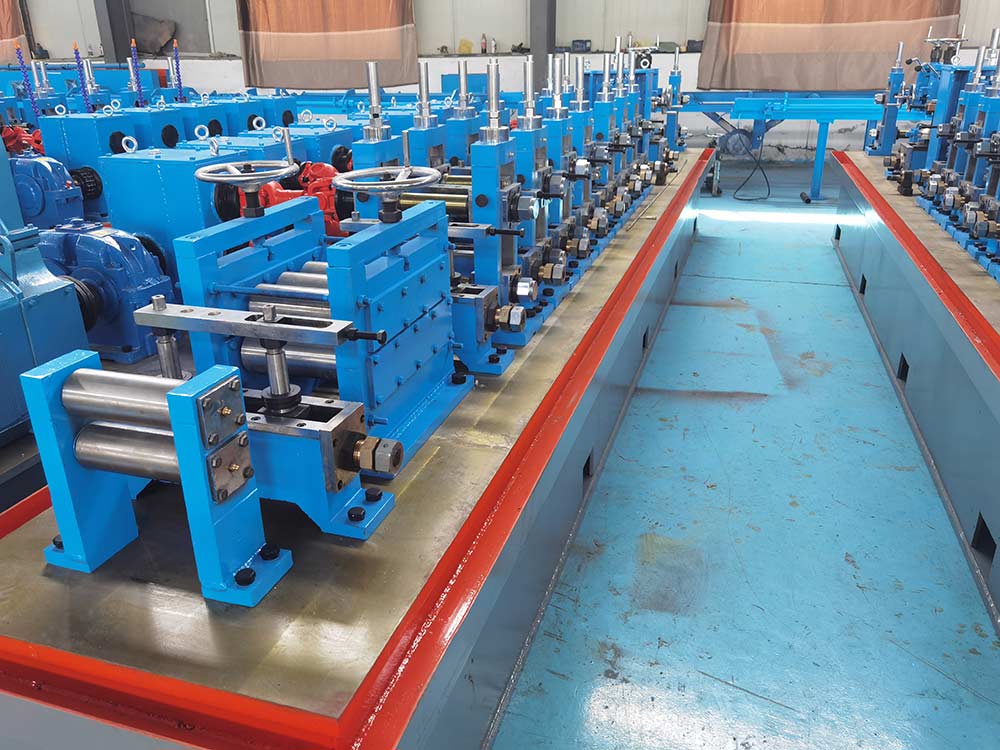

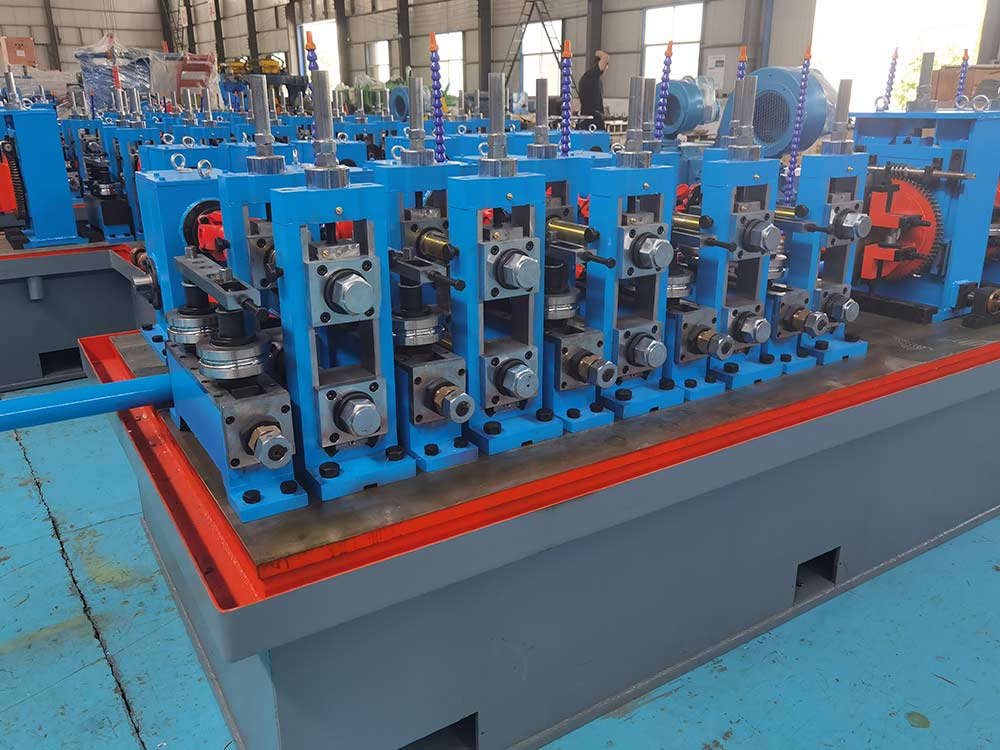

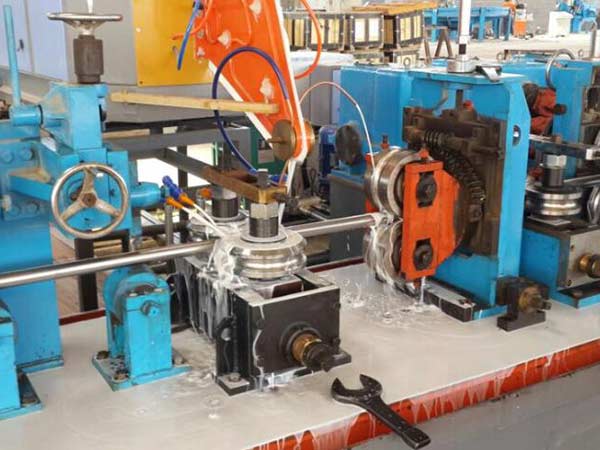

Spiral Accumulator→→Forming section (Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller) + De-burr frame →→Cooling unit →→ Sizing section →→Cold saw→→ Run-out table
Products:
Carbon steel tube as per customer’s request:
|
: Min. Φ12.7mm, Max. Φ38.1mm |
|
|
Round Tube Thickness |
: Min.0.4mm, Max. 2.0mm |
|
Square Tube |
: Min.10X10mm, Max.30X30mm |
|
Rectangle Tube |
: Min.10X20mm, Max.20X40mm |
|
Sq & Rect. Tube Thickness |
: Min.0.4mm, Max.1.5mm |
|
Pipe Length |
: 6.0m |
|
Length Tolerance |
: 0-6mm |
5. Line Speed : 30-100m/min
6. Power Source
|
Dynamic power |
: AC380V±10%, 3phases, 50Hz±1.0% |
|
Control Power |
: AC24V±10%, one phase,50 Hz±1.0% |
7. Cooling water
|
Reservoir for High Frequency equipment |
: 20m³, 1 set |
|
Reservoir for circulating cooling water |
: 15m³, 1 set |
8. Compressed air
|
Pressure |
: 0.4Mpa |
|
Flow |
: 0.8m3/h |
