Product Description

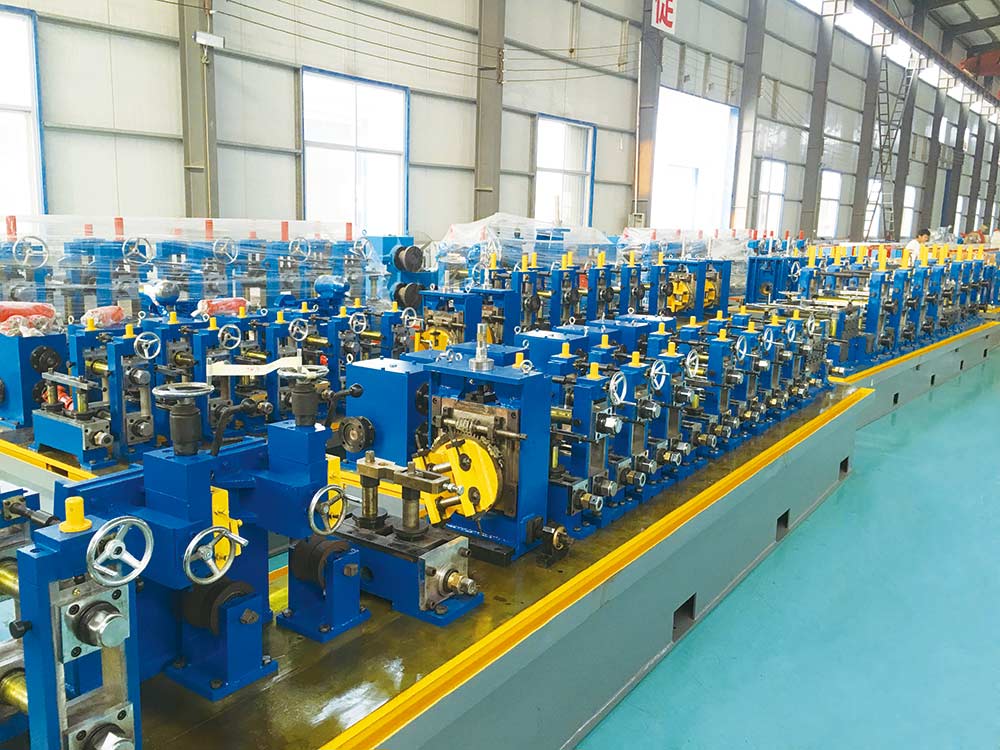

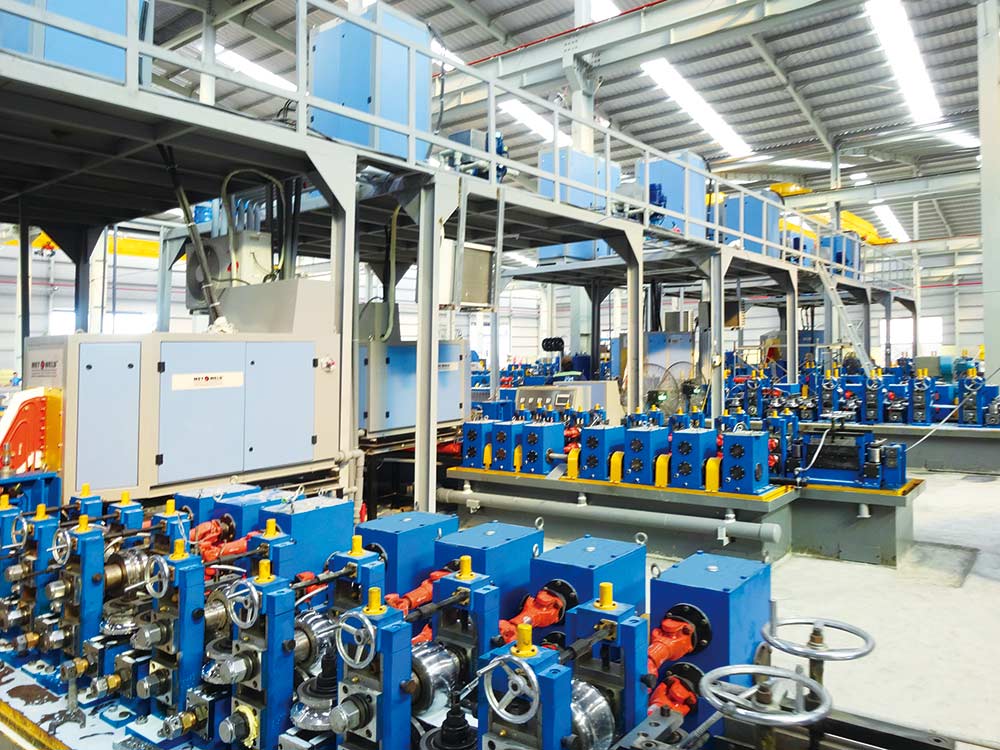

The mill is intended for manufacturing of round pipe of Φ16mm-Φ50mmwith thickness of0.5mm–2.5mmfrom cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.
Finished product will be of round, square or rectangular pipe.
Specifications
II. The technical flow of the production line
{SteelTape}→→ Double-head un-coiler →→Strip-head Cutter and welder→→
Cage Loop→→Forming section（Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller）+ De-burr frame →→Cooling unit →→ Sizing unit and straightener →→Flying saw under computer-control →→ Run-out table
III. Basic conditions:
a) Steel Pipe Specification
1. Round Pipe diameter: Φ16–Φ50mm
Pipe Thickness: 0.5 –2.5mm
2. Square Pipe: 12X12mm–40X40mm
Rectangle Pipe: 10X15mm–30X50mm
Pipe Thickness: 0.5 –2.0mm
3. Pipe Length: 6.0m–9.0m
4. Length Tolerance: 0-6mm
b) SteelTape Specification
1. Material: Carbon steel (δb≤500Mpa, δs≤235Mpa)
2. Steel Tape: Inner diameter: Φ470-Φ510mm
Outer diameter: Φmax=1500mm
Strip steel width: 50mm-160mm
Strip steel thickness: 0.5mm-2.5mm
The maximum weight: 1.5 tons
c) Electric installed capacity: appro. 250KW
d) Size of the whole line: appro. 50X5m
e) Line Speed: 30-90m/min
