Product Description
Summary

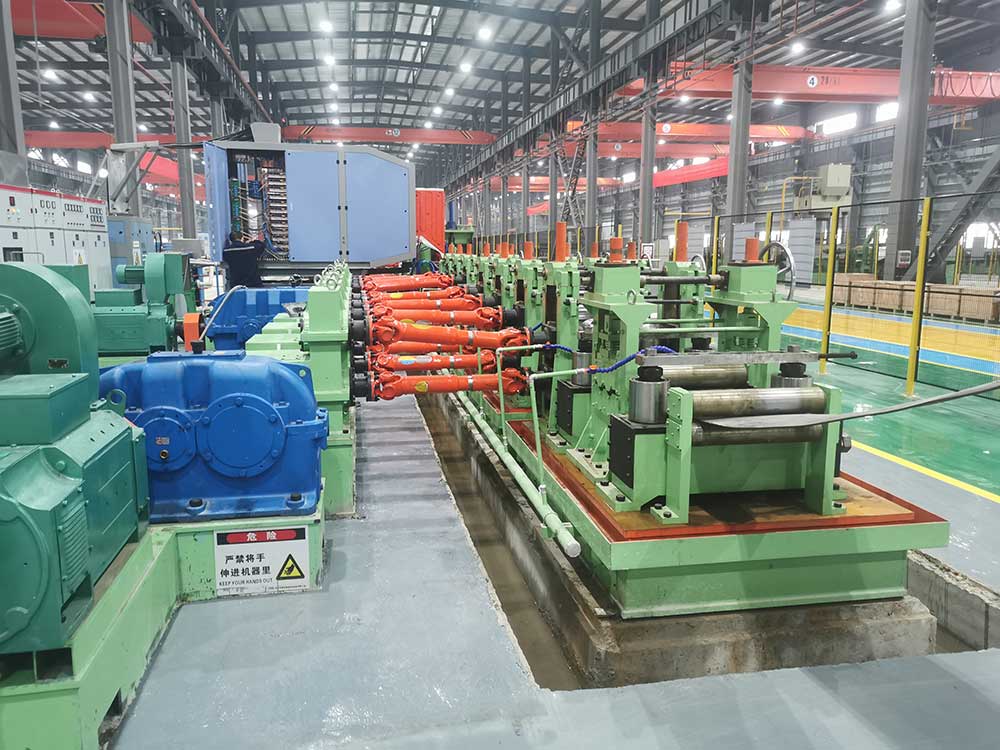

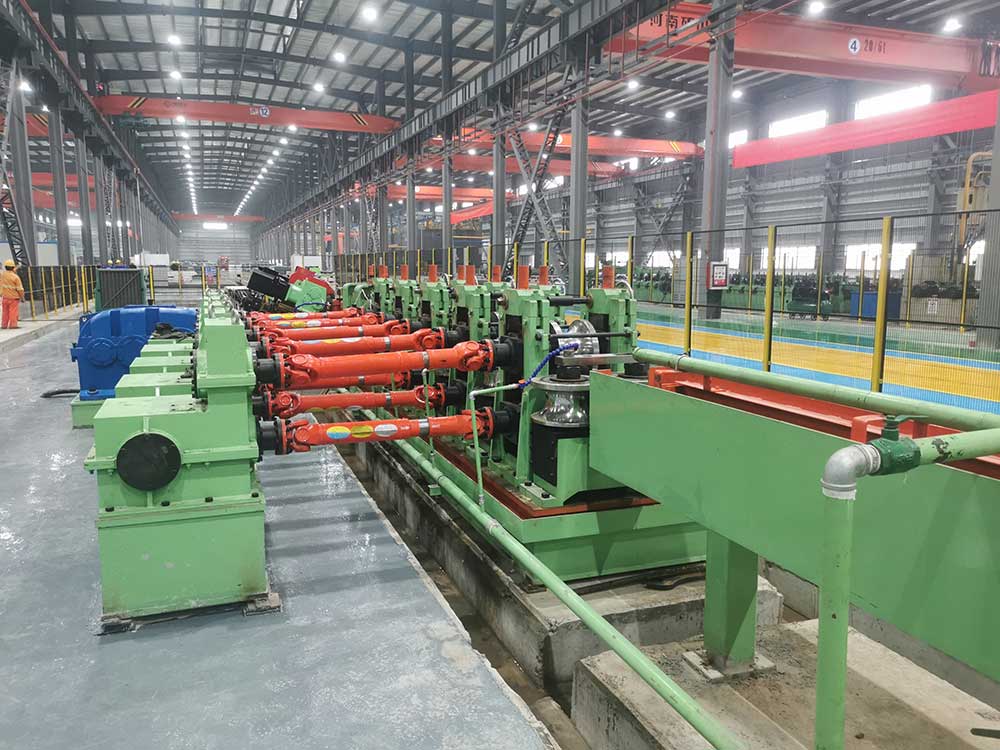

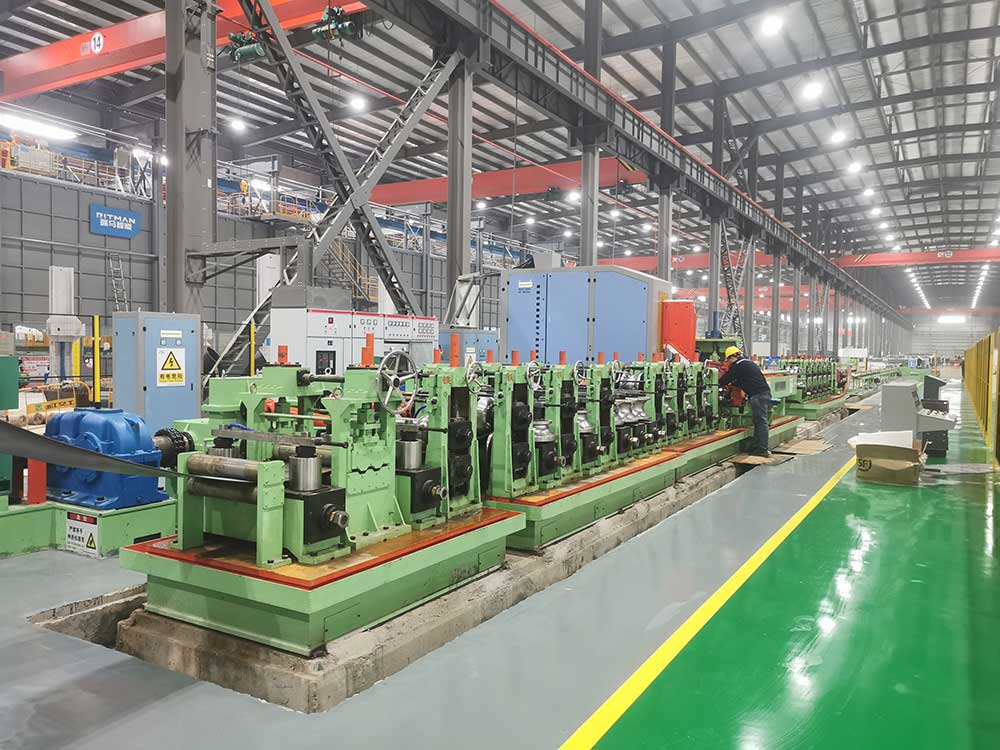

The mill is intended for manufacturing of round pipe of Φ76mm-Φ168mm with thickness of 2.0mm–6.0mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.
Specifications
The technical flow of the production line
{SteelTape}→→ Single-arbor un-coiler →→Strip-head Cutter and welder→→

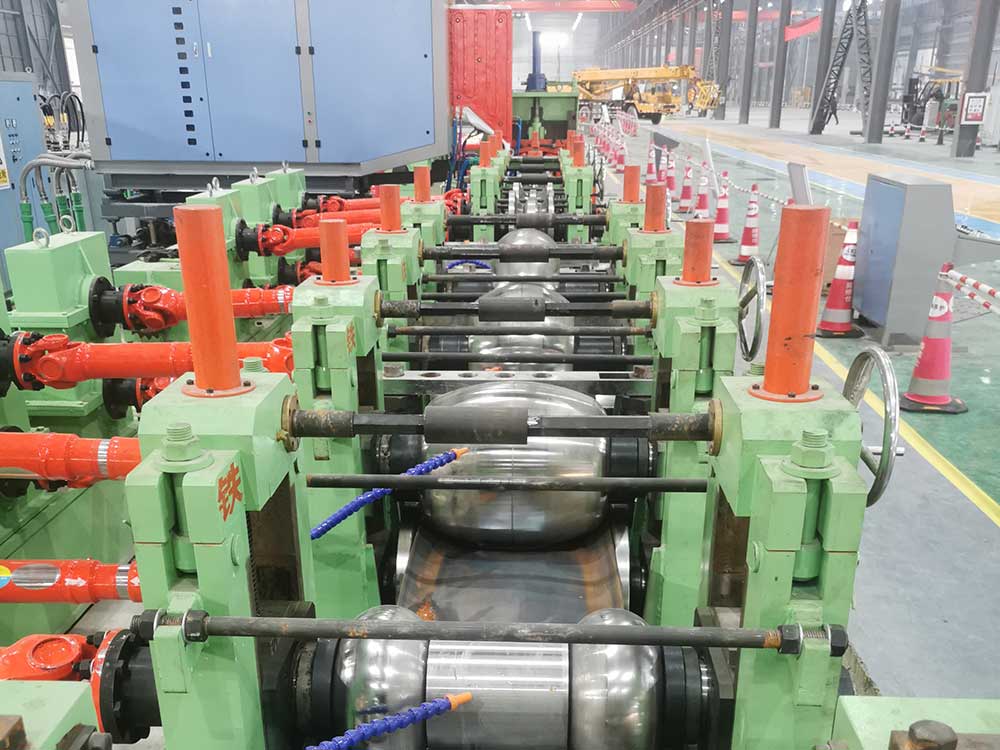

Spiral Accumulator→→Forming section (Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller) + De-burr frame→→Cooling unit →→ Sizing unit and straightener →→Flying saw→→Rollout conveyor
Products:
Carbon steel tube as per customer’s request:
|
: Min. Φ76mm, Max. Φ168mm |
|
|
Round Tube Thickness |
: Min.2.0mm, Max.6.0mm |
|
Square Tube |
: Min.60X60mm, Max.130X130mm |
|
Rectangle Tube |
: Min.40X80mm, Max.80X160mm |
|
Sq & Rect. Tube Thickness |
: Min.2.0mm, Max.6.0mm |
|
Pipe Length |
: 6.0-12.0m |
|
Length Tolerance |
:±3.0mm |
Line Speed : 20-60m/min
Power Source
|
Dynamic power |
: AC380V±10%, 3phases, 50Hz±1.0% |
|
Control Power |
: AC220V±10%, one phase, 50Hz±1.0% |
Cooling water
|
Reservoir for High Frequency equipment |
: 25m3, 1 set |
|
Reservoir for circulating cooling water |
: 20m3, 1 set |
