Product Description

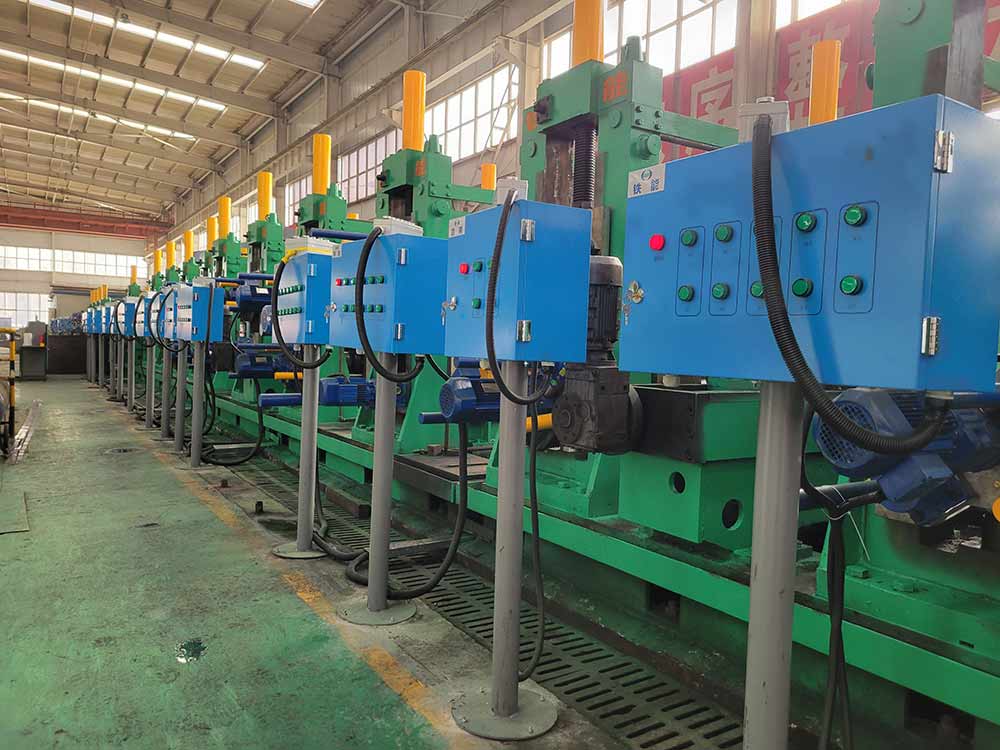

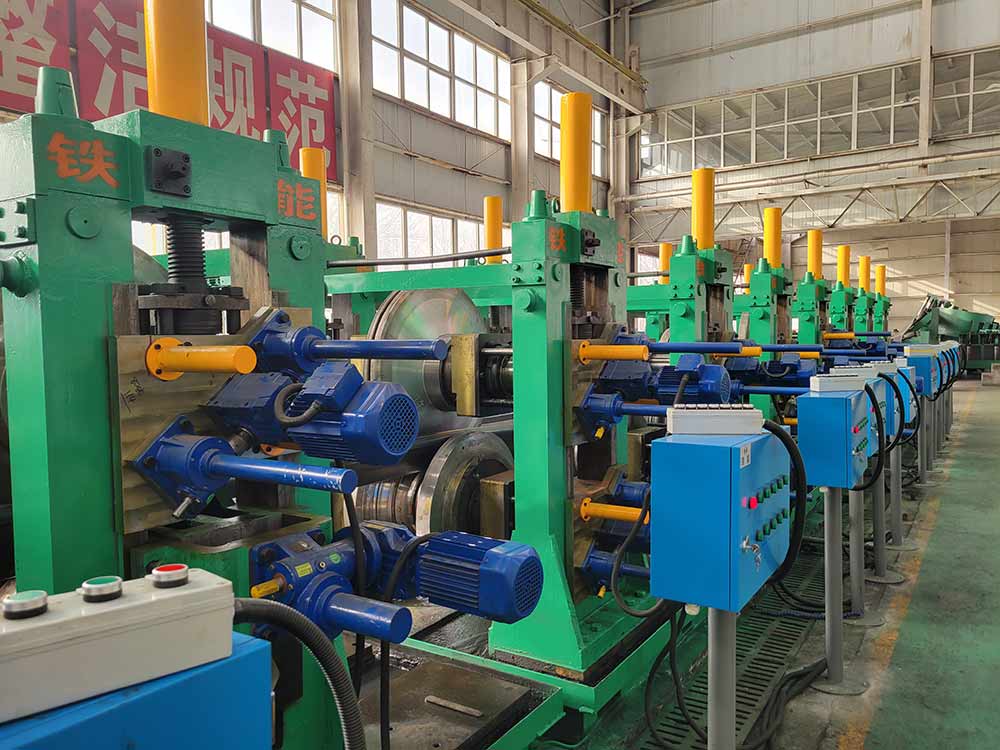

The mill is intended for manufacturing pipe of 80X80mm-200X200mm with thickness of 3.0mm–8.0mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.
Finished product will be of square and rectangle pipe.
Specifications
Basic conditions:
a) Steel Pipe Specification
1. Square pipe: 80x80-200X200mm
2. Rectangle pipe: 60x100-250X150mm
3. Pipe Thickness: 3.0– 8.0mm
4. Pipe Length: 4.0m – 12.0m
5. Length Tolerance: ±3mm
b) SteelTape Specification
1. Material: Low Carbon steel (δb≤500Mpa, δs≤235Mpa)
2. SteelTape: Inner diameter: Φ480-Φ700mm
Outer diameter: Φmax=1800mm
Strip steel width: 320mm-800mm
Strip steel thickness: 3.0mm-8.0mm
The maximum weight: 15 tons
c) Electricity
1. Dynamic power: AC380V±10%, 3phases, 60Hz±1.0%
2. Control Power: AC220V±10%, one phase, 60 Hz±1.0%
d) Electric installed capacity: appro. 1200KW
e) Cooling water
1. Reservoir for High Frequency equipment: 35m3, one set
2. Reservoir for circulating cooling water: 30m3, one set
f) Compressed air
1. Pressure: 0.4Mpa
2. Flow: 4.0m3/h
g) Line speed: 10-40m/min
h) Produce direction: From left to right
