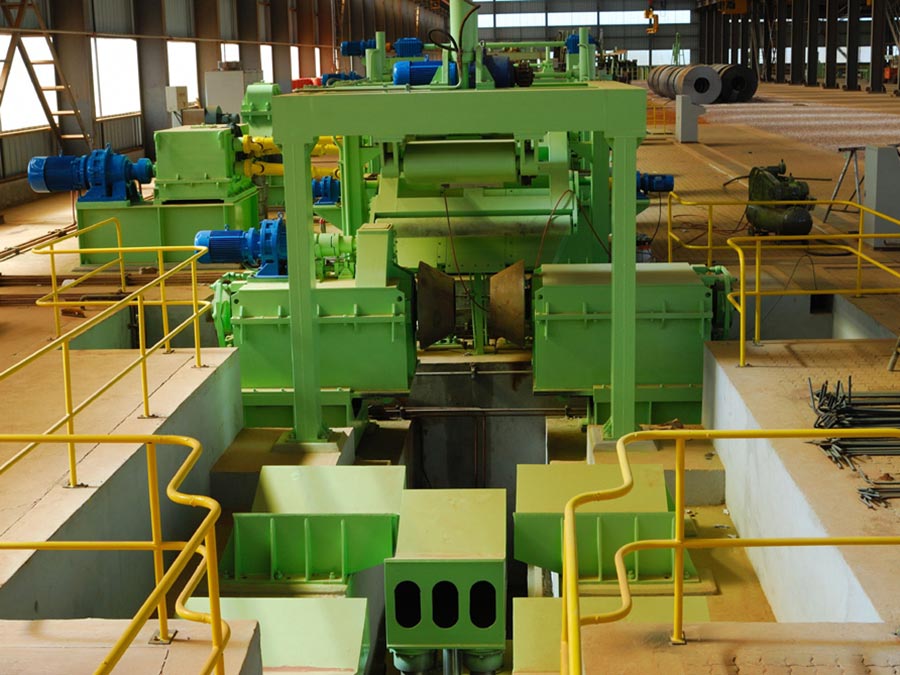

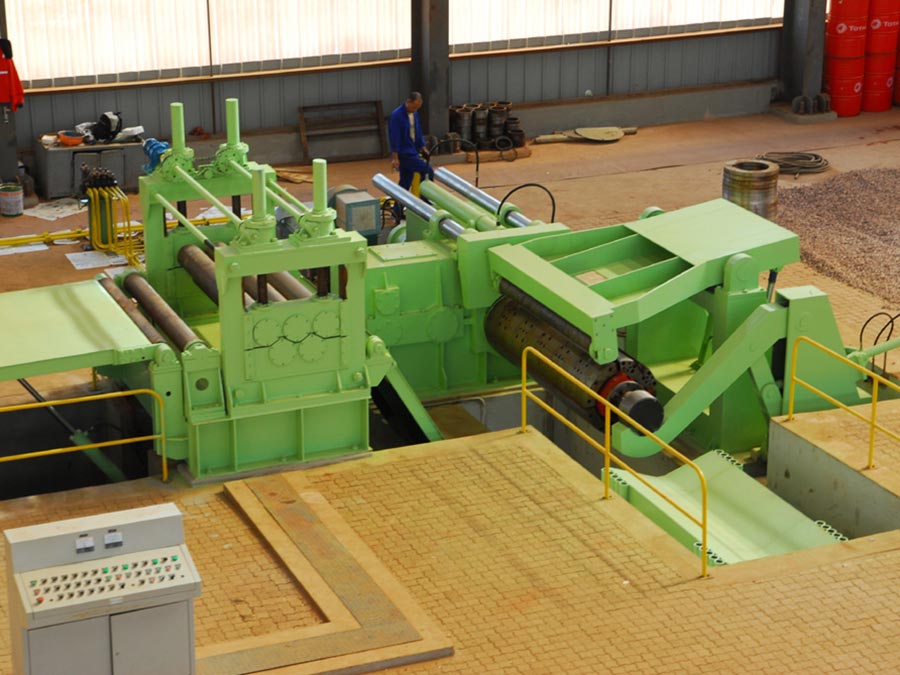

ZJ2000x6 Slitting Line

ZJ2000x6 Slitting Line

Contact us
  • Categories：Slitting Line & Cut-to-length Line
  • Phone：+8613933818089
  • manufacturer：Shijiazhuang Teneng electrical&Mechanical

Product Description

Our company are expertise in manufacture series of leveling line, leveling and line, slitting line, etc. Our products are in many steel mills and renowned industry and mining enterprises, and exports to Europe, Africa, southeast Asia and many other countries and regions which shares a very high popularity both home and abroad.

This line is apply for various kinds of steel plates slitting, recoiling. It used to uncoiling large coil drum plate, and slitting into umpty strips as required width, then to recoiling and packing into whole bale of plane plate for next procedure of cold-bending, punching, pipe welder, etc.



Specifications

Major Technical Parameter:

1.Coil thickness:        5.0-16.0mm

2.Coil material:         low-carbon steel, (Q235, Q345)

3.Coil width            600-2000mm

4.Coil O.D.             Φ1000-Φ2000mm

5.Coil I.D.              Φ500-Φ800mm

6.Coil weight            ≤20T

7. Slitting precision       width tolerance: ±0.15mm;

Vertical tolerance (side bending):   ≤0.8mm/m;

8.Slitting strips mini. width:   450mm;

9.Slitting speed:             0-35m/min;

10.Slitting strips:           5-8mm:10pcs， 9-11mm:8pcs；

12-15mm: 5pcs;

11. Recoiling dia.:           Φ760mm

12. Line working surface elevation: 800mm
