Product Description

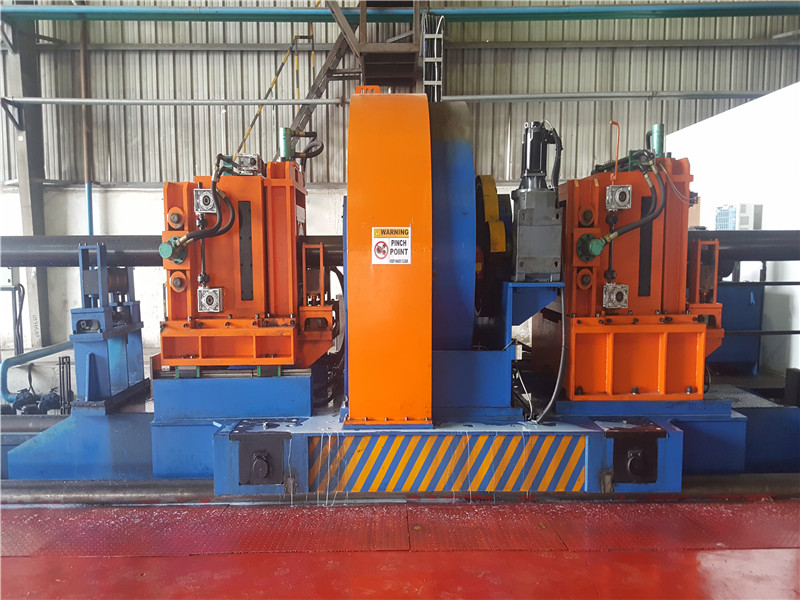

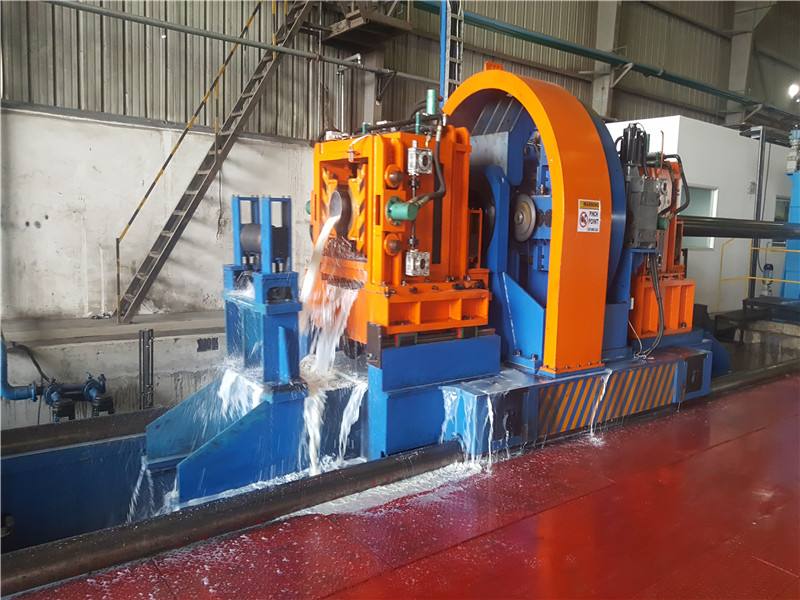

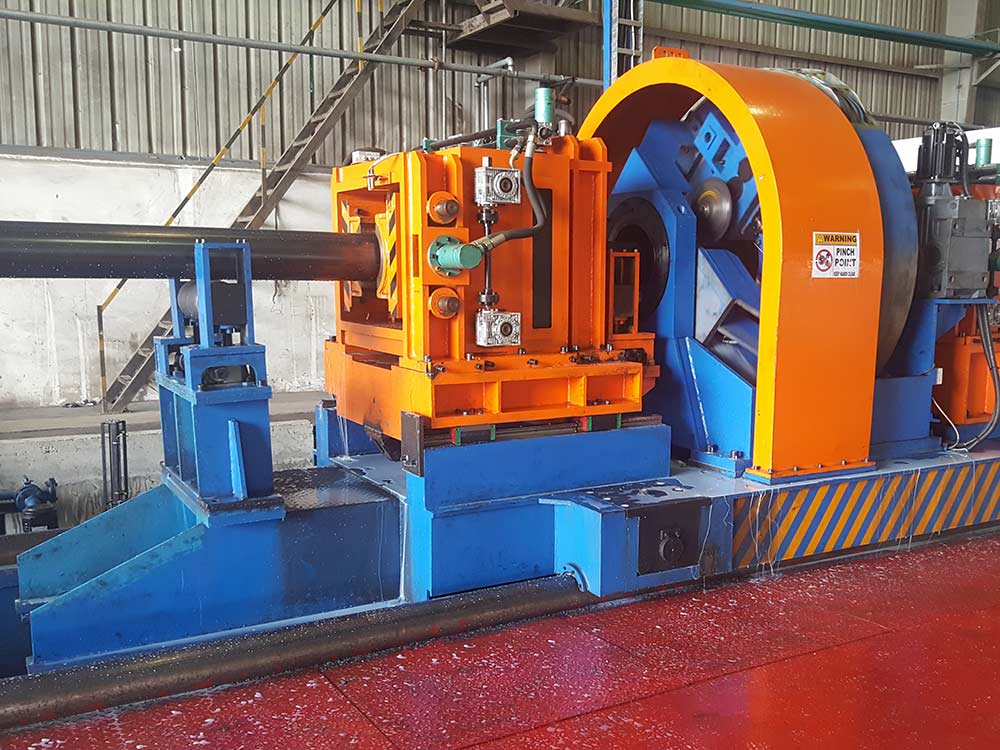

Milling saw is a new line cutting technology in pipe welding industry. The most important feature is the cold milling principle. After cutting off, the pipe end is flat without burr, and there is no need for secondary cutting in applications with high processing requirements. In addition, the precision of cutting length is higher than that of ordinary computer flying saw because of the servo tracking technology. Significantly reduce dust and noise pollution in the production process.
Specifications
2.1 General
2.1.1 Scope of application: Low carbon steel (Max.Q235);
2.1.2 Pipe specification:
Round Pipe diameter: Φ150–Φ323mm
Pipe Thickness: 4.0 – 12.0mm
Square pipe：150x150-220x220mm
Rectangle pipe：100x200-200x300mm
Pipe Thickness: 4.0 – 12.0mm
Cutting accuracy (range length): +/ - 1.5 mm;
Inside bead NOT removing
2.1.3 Mill line: Direction from left or right ; Max. line speed: 40 m/min.
21.4 Cutting length: 1.0-32.0mm（can adjust）
2.1.5 Length precision: ±1.5mm (line speed fluctuating less than 2%)
2.1.6 Cutting speed: Max. 40m/min
