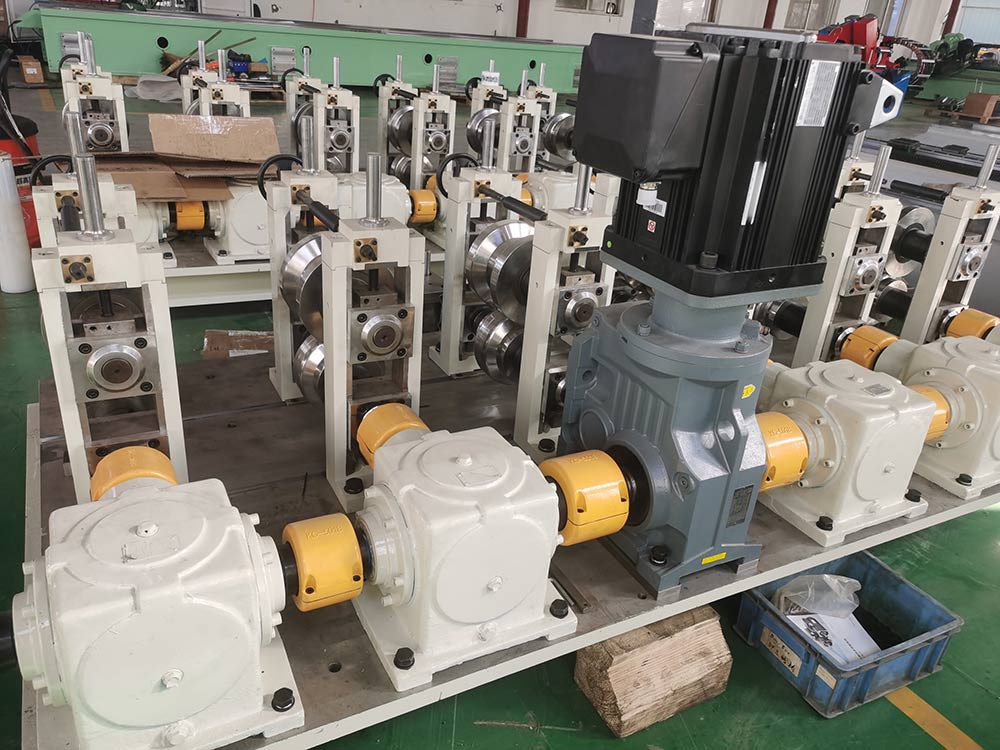

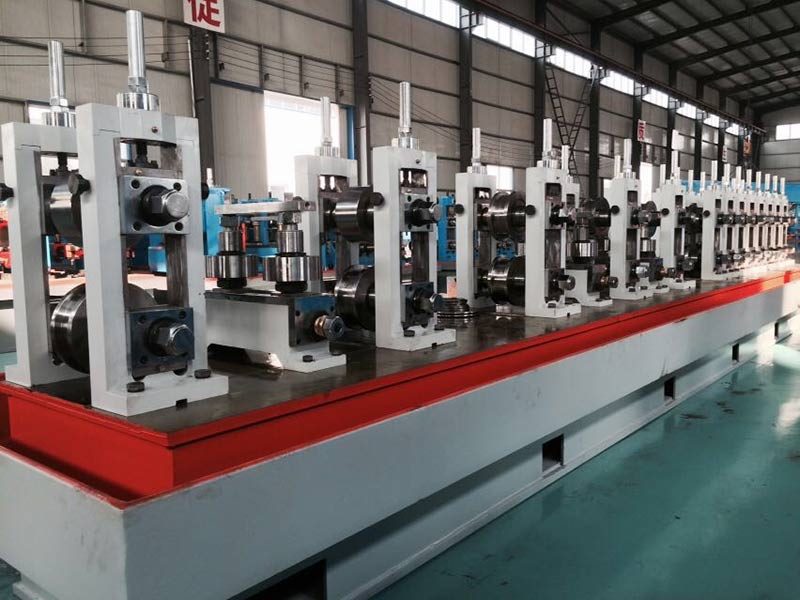

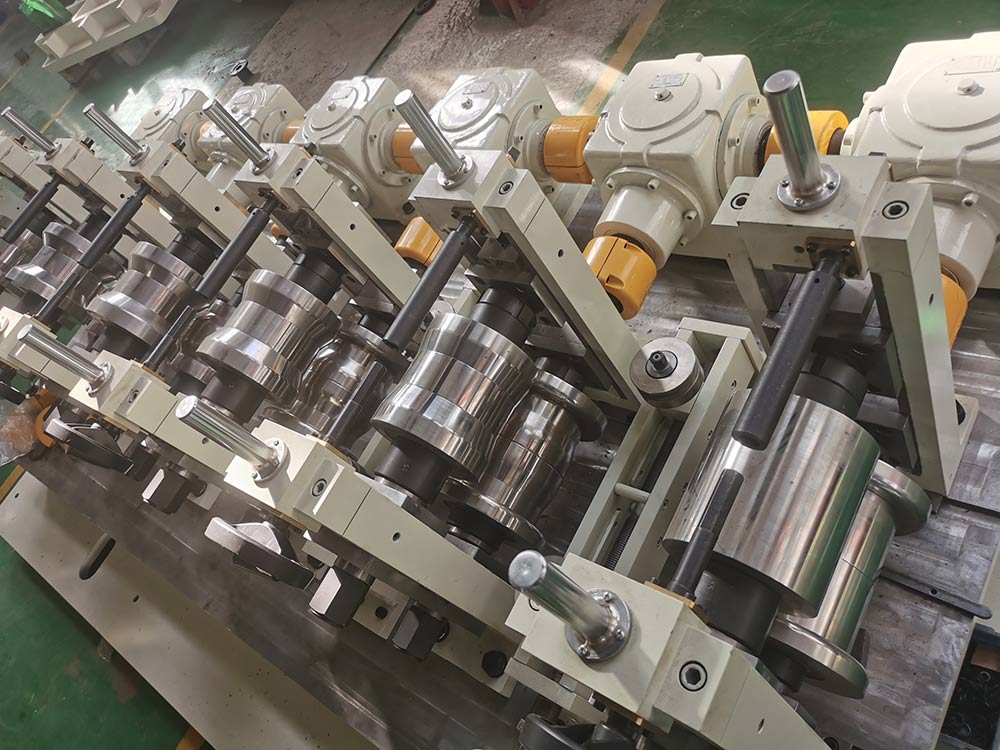

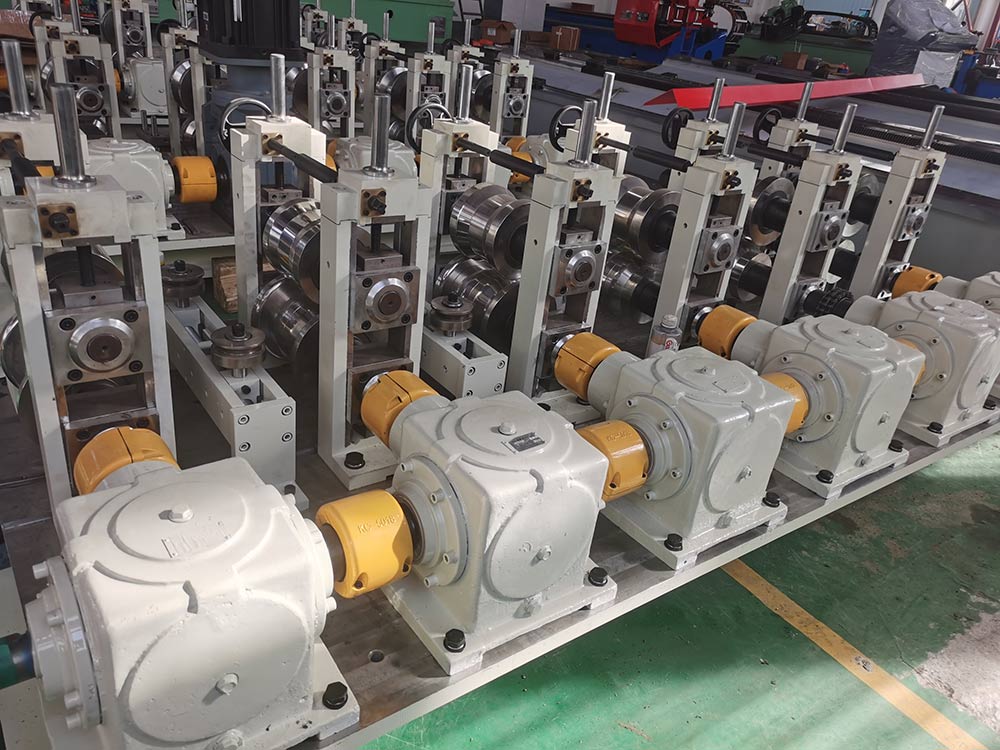

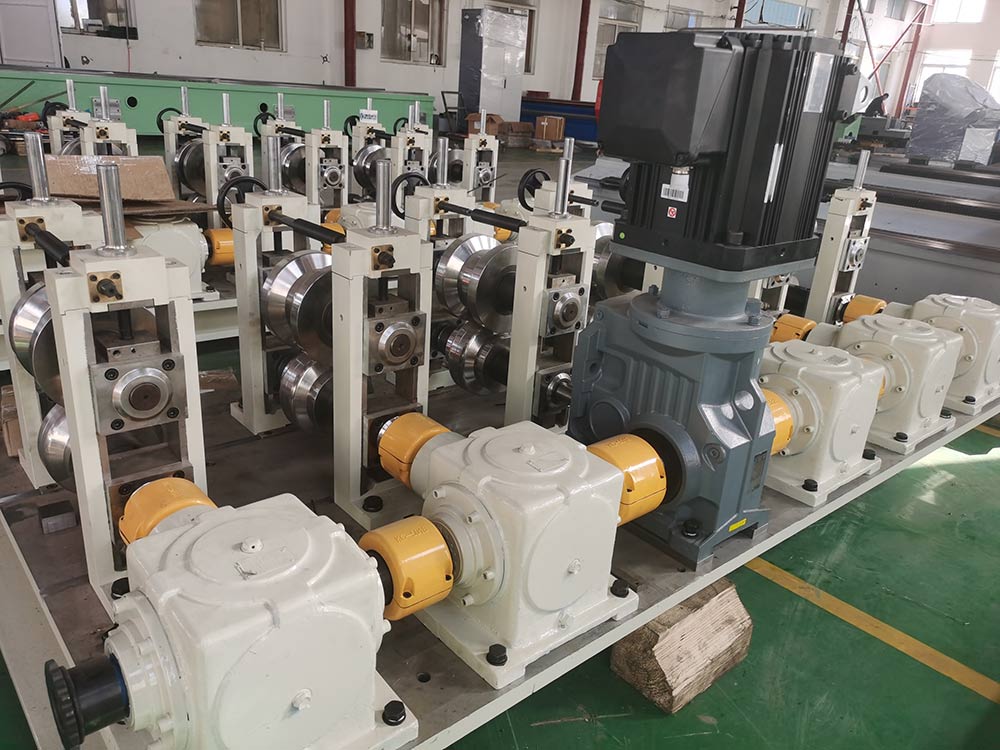

C profile Cold roll forming machine

Ø MATERIAL:

(1) Coil Width:          1250mm

(2) Suitable Coil Thickness: 0.4-0.8mm

(3) Suitable Raw Materials: pre-painted steel coil

(4)Yeild Strength:         235Mpa/550MPA

(5)Roll Forming Step:     about 20 steps

(6)Material of Roller:      45# steel， with hard chrome on the surface

(7)Voltage:               380V/50HZ

(8)Line Speed：          about 10m/min

Ø MACHINE COMPONENTS:

(1) Hydraulic un-coiler                               1 set

(2) Feeding & guiding device                         1 set

(3) Roll-Forming M/C                                1 set

(4) Hydraulic Cutter                                 1 set

(5) Run-out Table (un-powered)                       1 set

(6)Hydraulic Station                                  1 set

(7) PLC Control System                              1 set

Ø Production process flow :

Uncoil—Feeding& guiding—Roll forming—Hydraulic cutting—Run out
