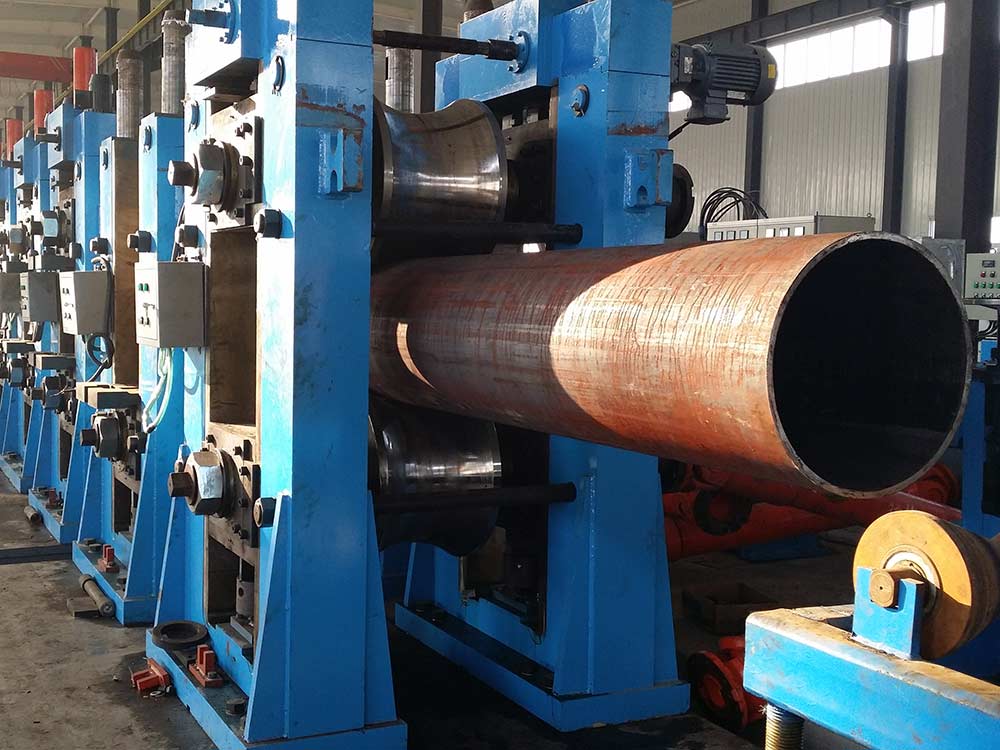

HGF250 Sizing Mill

II. Basic conditions:

(I) Steel Pipe Specification

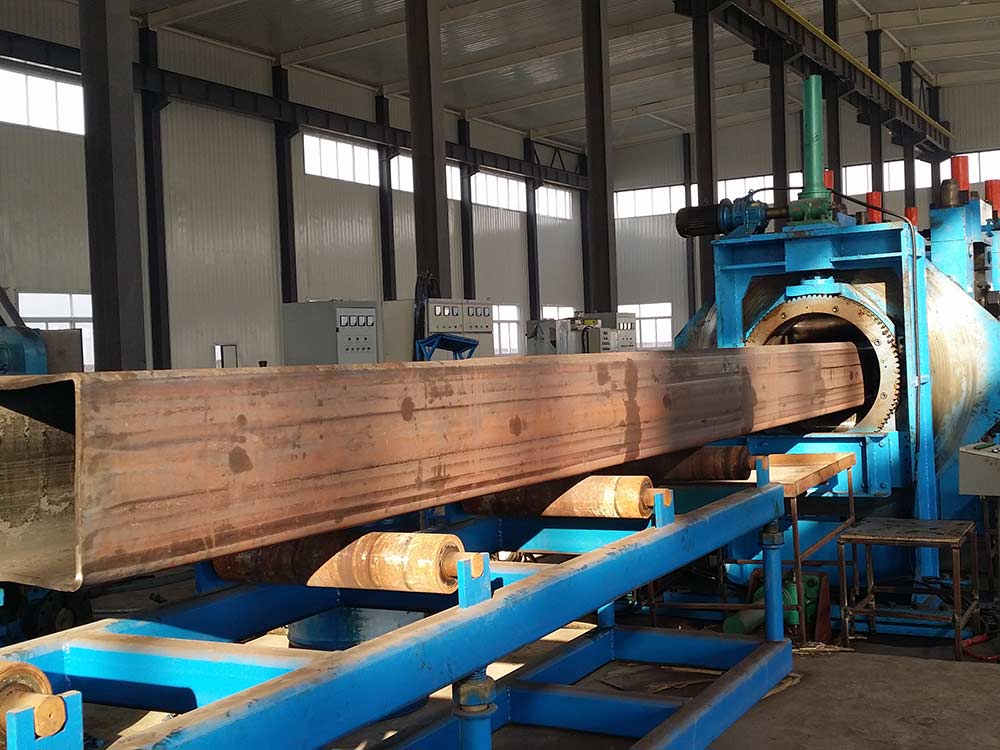

(1) Square Tube:            100X100-250X250mm

Thickness:               3.0-10.0mm

(2) Rectangle Size:          80X120-200X300mm

Thickness:               3.0-10.0mm

(3) Length tube:             6.0-12.0m

(II) Strip steel

(1)          Material steel:

Round tube:           Φ127-Φ325mm

Thickness:            3.0-10.0mm

Length tube:           6.0-12.0M

(III) Electric installed capacity: appro. 200kW

(IV) Size of the whole line: appro. 40X5m

(Ⅴ) Electric powers:

Power

Voltage:                    AC380V±10%

Phase:                     3 phase

Frequency:                 50Hz±1.0%

Control power:

Voltage:                    AC220V±10%

Phase:                     single phase

Frequency:                 50Hz±1.0%

(Ⅵ) Line speed: 5-15m/min

(Ⅶ) The height of rolling low line: +900mm

(Ⅷ) Feeding direction: Left or Right
