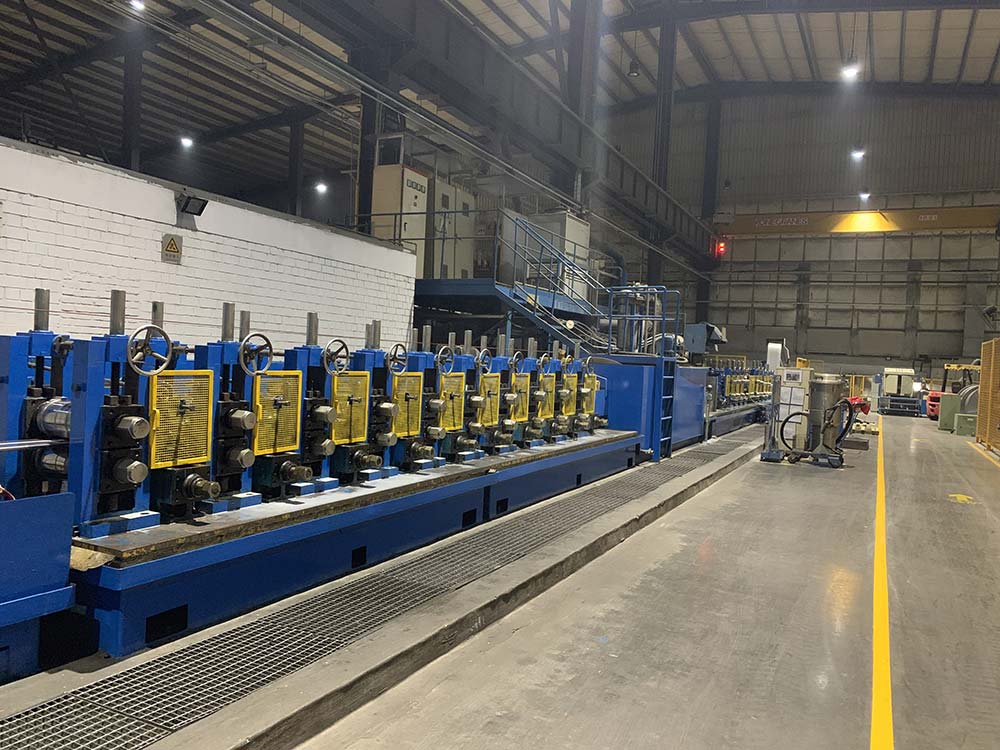

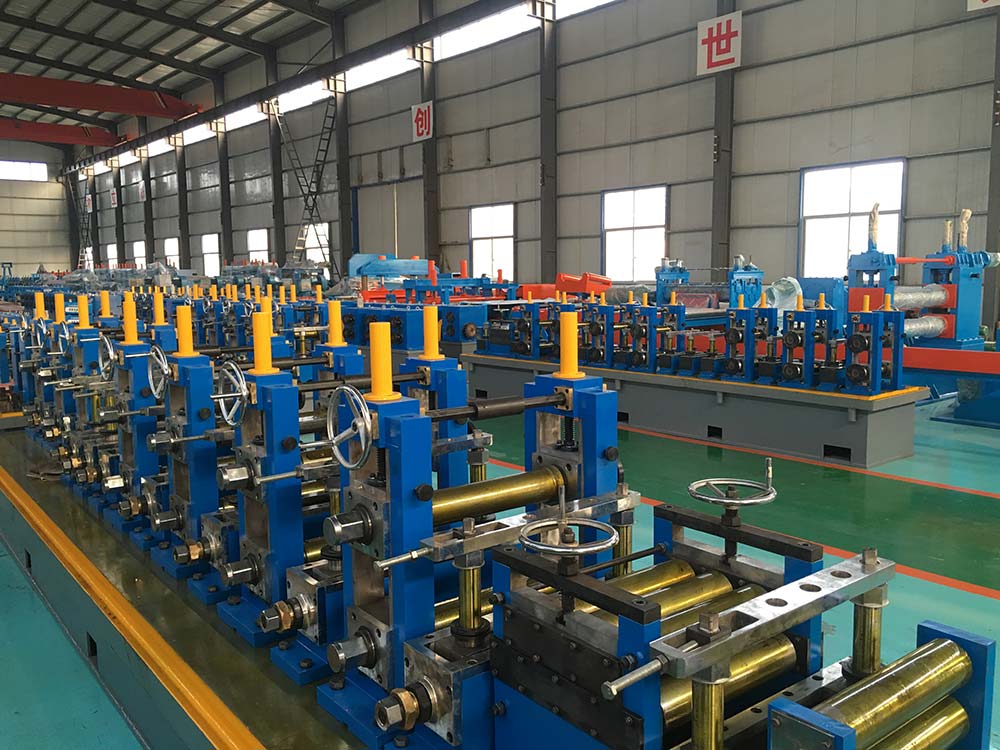

The mill is intended for manufacturing of round pipe of 150x150mm-300x300mm with thickness of 8.0mm–16.0mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.
Specifications
2. Raw material: Q195, Q235, Q345;
|
Supplied coil width |
: Min.600mm, Max.1200mm |
|
Supplied coil thickness |
: Min.8.0mm, Max.16.0mm |
|
Supplied coil outside DIA. |
: Φ1000mm-Φ2000mm |
|
Supplied coil inside DIA. |
: Φ610mm-Φ760mm |
|
Supplied coil weight |
: Max. 35.0 tons |
3. The technical flow of the production line
{SteelTape}→→ Hydraulic Double-arbor un-coiler →→Strip-head Cutter and welder→→Spiral Accumulator→→Forming section (Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller) + De-burr frame →→Cooling unit →→ Sizing section →→Milling saw→→Run out table→→Automatic packing machine
4. Products:
Carbon steel tube as per customer’s request:
|
: Min.150X150mm, Max.300X300mm |
|
|
Rectangle Tube |
: Min.100X200mm, Max.200X400mm |
|
Sq & Rect. Tube Thickness |
: Min.8.0mm, Max.16.0mm |
|
Pipe Length |
: 6.0-12.0m |
|
Length Tolerance |
: ±2.0mm |
5. Line Speed : 0-40m/min
6. Technology:
|
Forming mothed |
: square to square technology |
|
Welding mothed |
: Solid State H.F. welding |
|
Feeding direction |
: Right or left side feeding |
7. Power Source
|
Dynamic power |
: AC440V±10%, 3phases, 60Hz±1.0% |
|
Control Power |
: AC200V±10%, one phase, 60 Hz±1.0% |
8. Cooling water
|
Reservoir for High Frequency equipment |
: 45m3, 1 set |
|
Reservoir for circulating cooling water |
: 40m3, 1 set |
9. Compressed air
|
Pressure |
: 0.4Mpa |
|
Flow |
: 4.0m3/h |
