Product Description

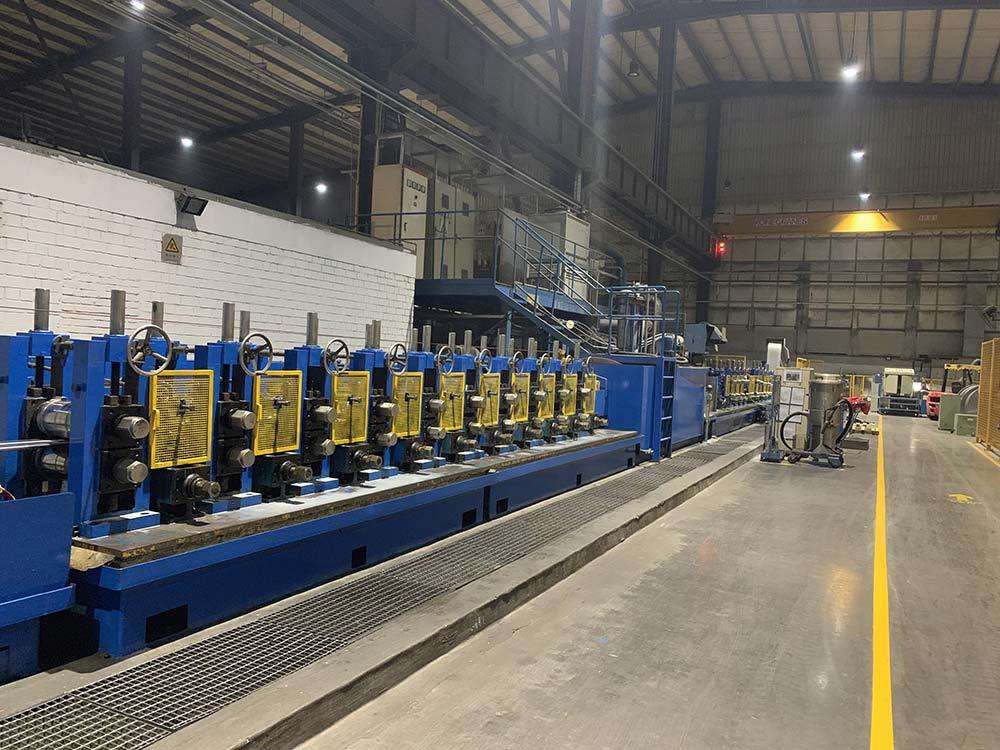

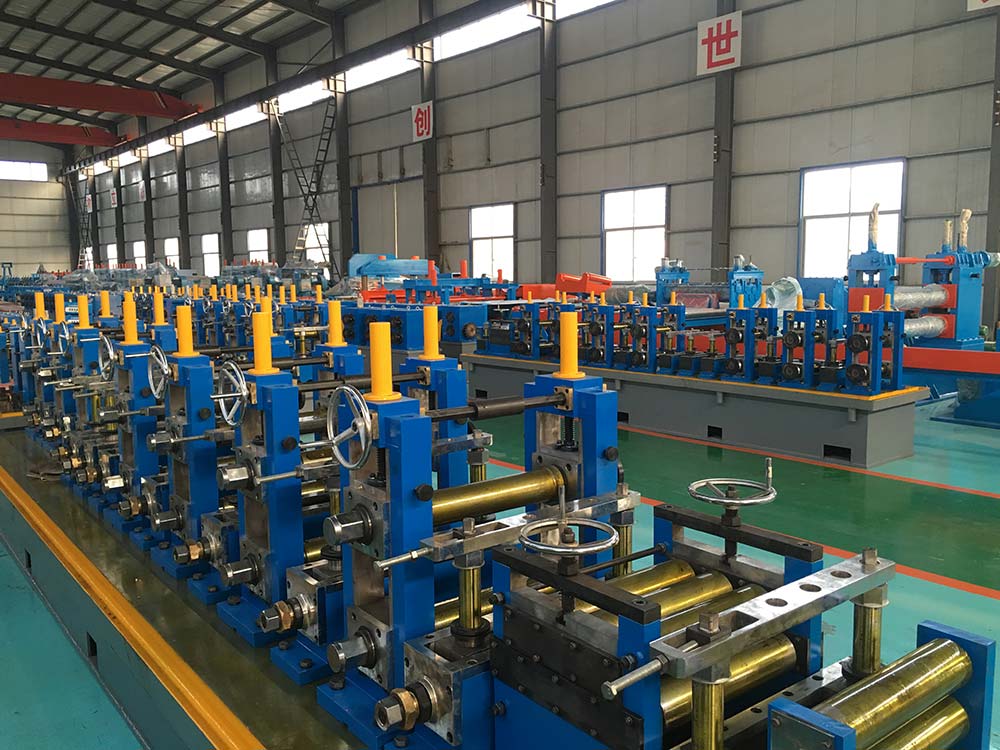

The mill is intended for manufacturing of round pipe of Φ12.7mm-Φ50mm with thickness of 0.8mm–3.0mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.
Specifications
2. Raw material, hot rolled coil or cold rolled coil slitted in suitable width, Max. Q235;
|
Supplied coil width |
: Min.40mm, Max.160mm |
|
Supplied coil thickness |
: Min.0.8mm, Max.3.0mm |
|
Supplied coil outside DIA. |
: Max. Φ1800mm |
|
Supplied coil inside DIA. |
: Φ508mm-Φ610mm |
|
Supplied coil weight |
: Max. 3.0 tons |
3. The technical flow of the production line
{SteelTape}→→ Double-head un-coiler →→Strip-head Cutter and welder→→
Spiral Accumulator→→Forming section (Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller) + De-burr frame→→Cooling unit →→ Sizing section →→cold saw →→ Run-out table
4. Products:
Carbon steel tube as per customer’s request:
|
: Min. Φ12mm, Max. Φ50mm |
|
|
Round Tube Thickness |
: Min.0.8mm, Max. 3.0mm |
|
Square Tube |
: Min.10X10mm, Max.40X40mm |
|
Rectangle Tube |
: Min.10X20mm, Max.30X50mm |
|
Sq & Rect. Tube Thickness |
: Min.0.8mm, Max.2.0mm |
|
Pipe Length |
: 6.0m |
|
Length Tolerance |
: 0-6mm |
5. Line Speed : 30-90m/min
6. Power Source
|
Dynamic power |
: AC440V±10%, 3phases, 60Hz±1.0% |
|
Control Power |
: AC220V±10%, one phase, 60 Hz±1.0% |
7. Cooling water
|
Reservoir for High Frequency equipment |
: 20m3, 1 set |
|
Reservoir for circulating cooling water |
: 15m3, 1 set |
8. Compressed air
|
Pressure |
: 0.4Mpa |
|
Flow |
: 0.8m3/h |
