Product Description

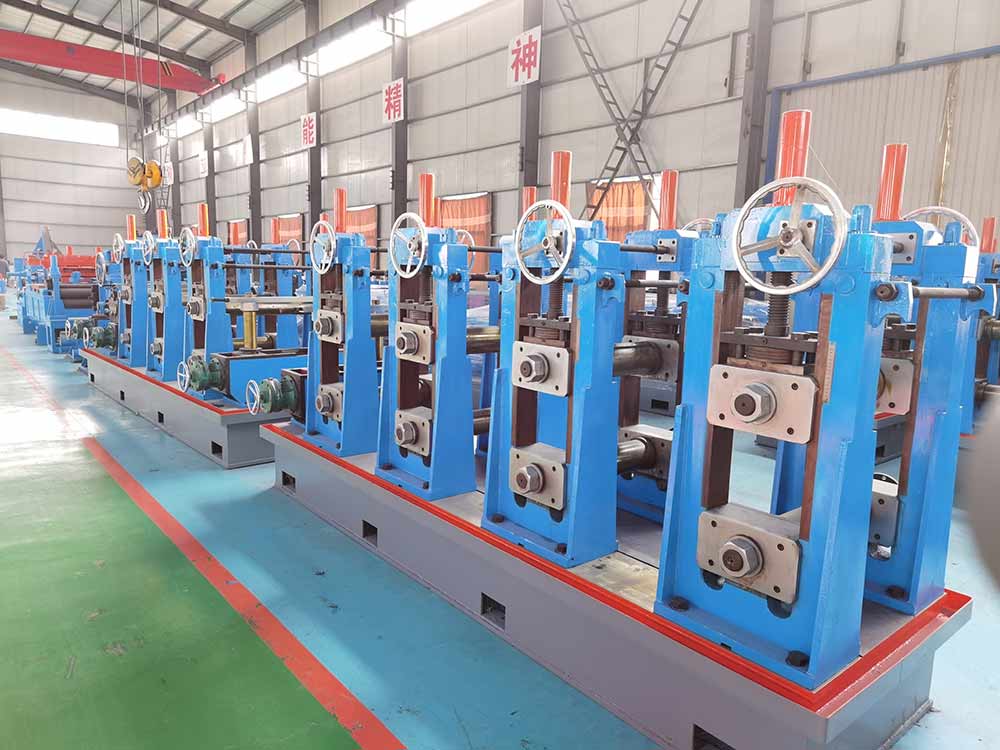

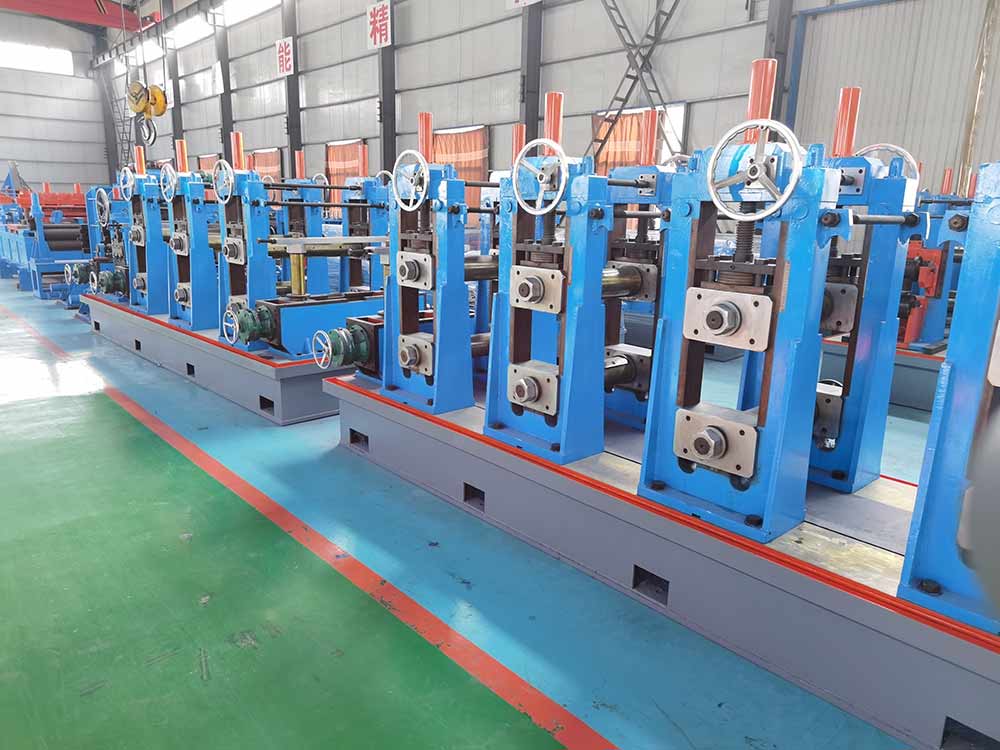

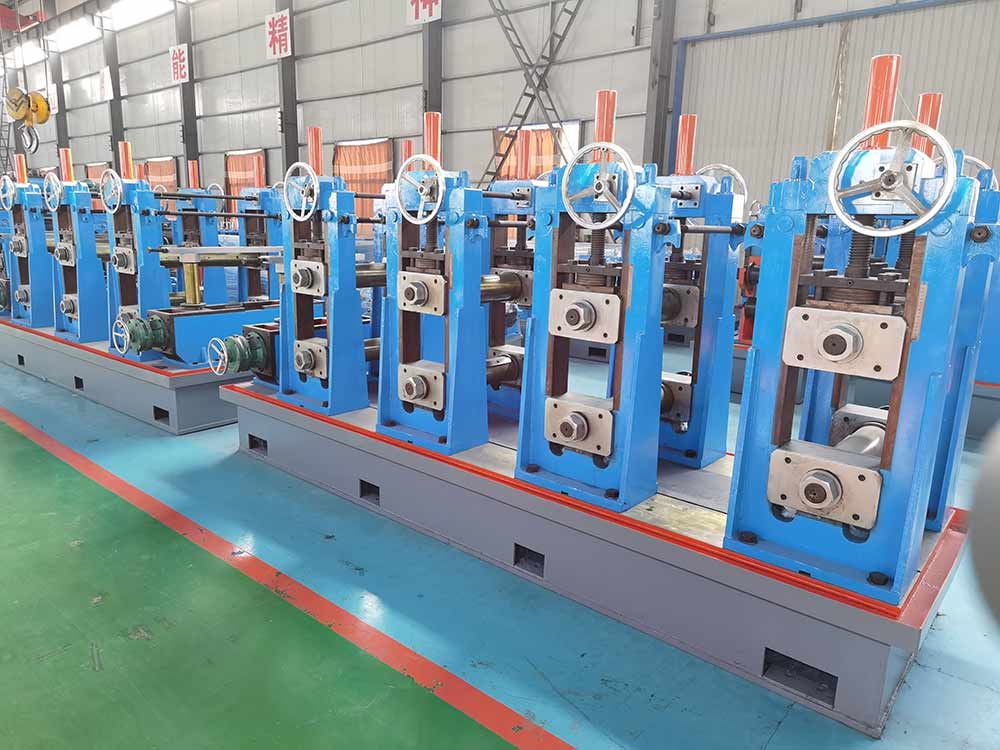

The mill is intended for manufacturing of square & rectangle pipe of 40x40mm-100x100mm with thickness of 1.5mm–5.0mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding directly to square and rectangle pipe, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of pipe welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.
Specifications
{SteelTape}→→ Single-arbor un-coiler →→Five-roll leveller→→Strip-head Cutter and welder→→Spiral Accumulator→→Forming section (Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller) + De-burr frame→→Cooling unit →→ Sizing section →→Cold saw→→Rollout conveyor→→Auto bundling & packing machine
4. Products:
|
: Low carbon steel, S235, S355, ST37, ST52, 12Mn; |
|
|
Square Pipe |
: Min.40X40mm, Max.100X100mm |
|
Rectangle Pipe |
: Min.40X50mm, Max.80X120mm |
|
Sq & Rect. Tube Thickness |
: Min.1.5mm, Max.5.0mm (for 12Mn, max.4.0mm) |
|
Pipe Length |
: 6.0-12.0m |
|
Length Tolerance |
:±2.0mm |
5. Line Speed : 20-70m/min
6. Power Source
|
Dynamic power |
: AC380V±10%, 3phases, 50Hz±1.0% |
|
Control Power |
: AC24V±10%, one phase, 50Hz±1.0% |
7. Cooling water
|
Reservoir for High Frequency equipment |
: 25m³, 1 set |
|
Reservoir for circulating cooling water |
: 20m³, 1 set |
8. Compressed air
|
Pressure |
: 0.8Mpa |
|
Flow |
: 2.0m3/h |
